Feeder PME


up to 200 – 800 mm bandwith

  • Drive via servo motor with servo gear or stepper motor and synchronous disks
  • Steel rollers, hardened and ground
  • Pneumatic roller lifting
  • Possible belt transport outside the center
  • Autonomous programmable control possible
  • Entry of: length, speed, acceleration
  • Data set processing
  • Functions: jog, targeted driving, automatic mode
PME Feeder
PME Feeder

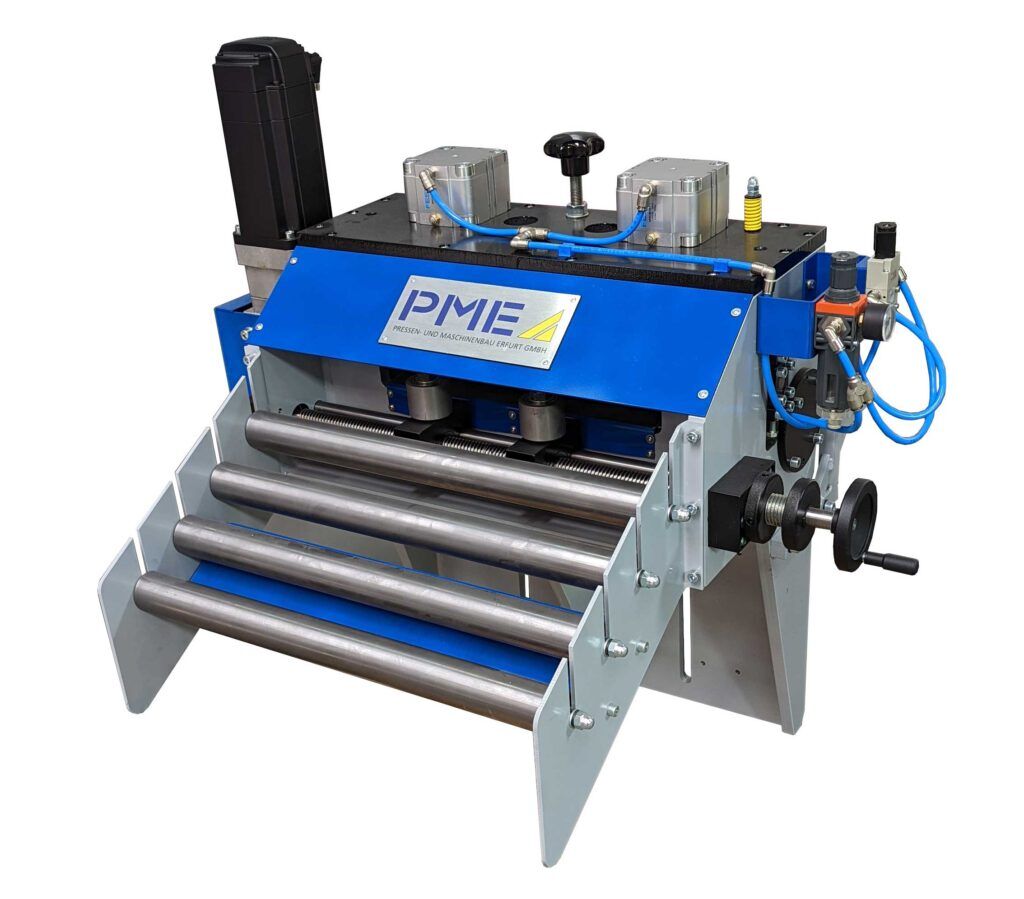

The feeder from PME are characterized by high repeat accuracy and dynamic application options. Both feed rollers are driven by the three-phase servo motor with zero backlash via planetary gears. The feed rollers are hardened and ground and have torsion-resistant bearings to prevent one-sided roller pressure. The contact pressure of the top roller is pneumatic via bellows cylinders and enables off-centre sliver transport. An infeed roller basket, an adjustable belt side guide and a belt end control on the infeed side are included in the standard version. The intermediate ventilation can be switched on and off.
